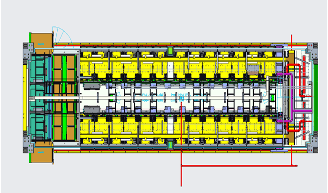

IT Pod

IT Pod

Model and Specification: 40HC high container

Quantity: 44

Remarks: 15 cabinets +4 liquid-cooled CDUs and secondary side piping

Auxiliary pod

Model and Specification: 40HC

Quantity: 40

Remarks: Used as passageways

  1. Each server cabinet consumes 50kW of power. There are approximately 660 server cabinets and 40 network cabinets. cabinet consumes 50kW of power. There are approximately 660 server cabinets and 40 network cabinets.

  2. Each IT Pod integrates CDU, secondary side piping, busbars, busbar monitoring, liquid-cooled cabinets, cabinet PDUs, internal potential grounding of the chassis, environmental monitoring, security integration, etc.

  3. The Auxiliary Pod includes auxiliary equipment, control rooms, offices, meeting rooms, etc., used for ECC, central control, pipeline, fire protection, fresh air (exhaust), and other equipment.

  4. It is recommended to consider an external maintenance structure for peripheral devices in the IT pod to ensure energy saving and cooling efficiency, thereby reducing the PUE value.
