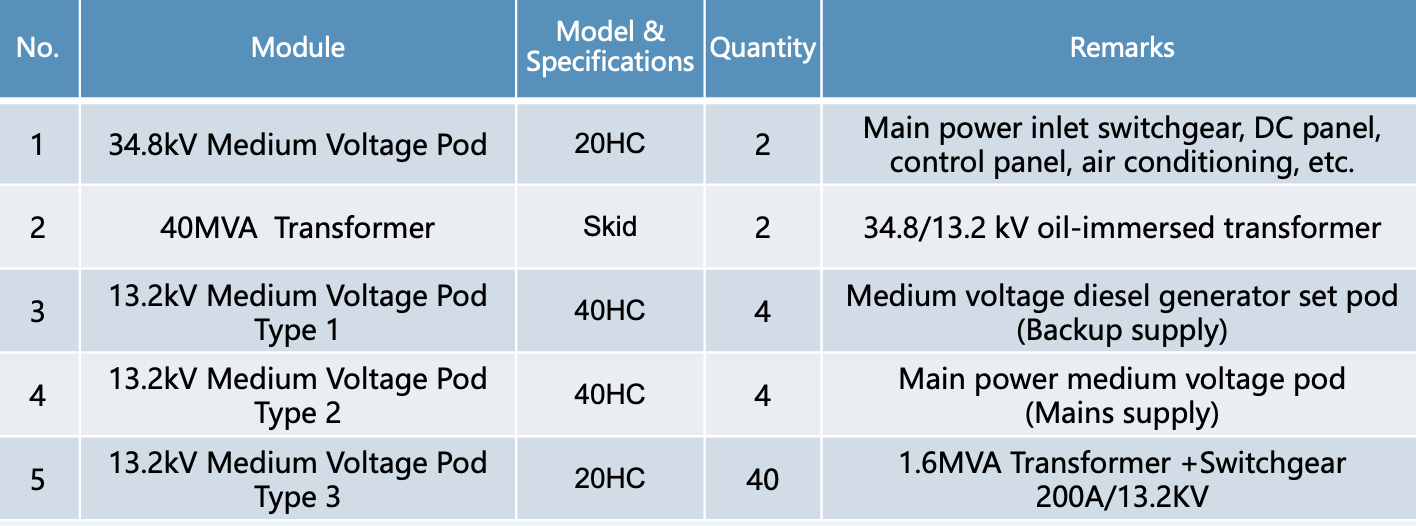

Medium Voltage Pod (MV Pod)
Adopts single-line mains power + diesel generator to meet Tier 3 standards;
IT power consumption is 33MW, with a total power consumption of 40MW;

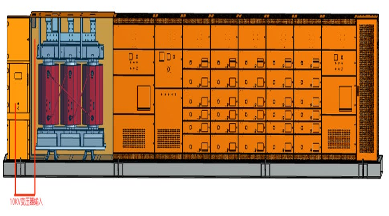

The medium voltage distribution pod integrates transformer, switchgear, busbar, DC panel, low-voltage monitoring cabinet, fire protection, lighting, environmental monitoring, security, and more;

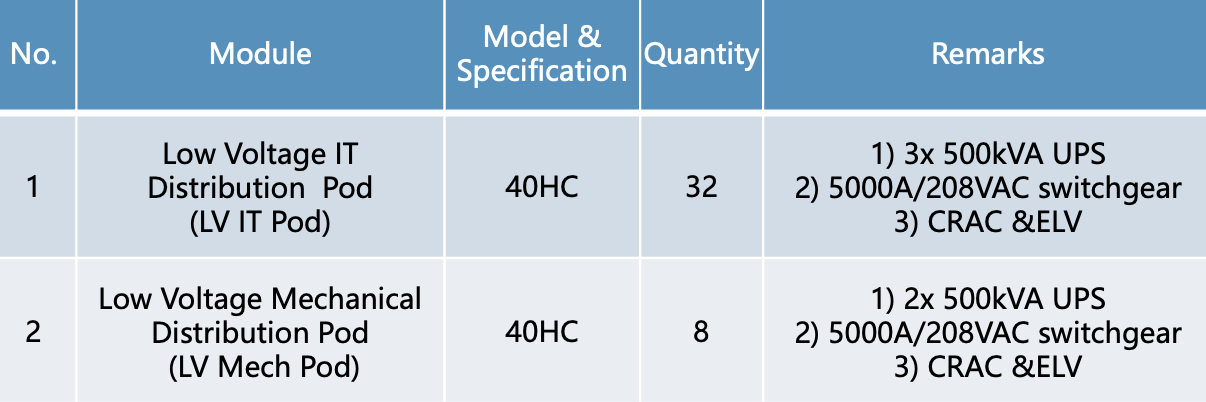

Low Voltage Pod (LV Pod)
The low voltage distribution pod integrates:
Low voltage cabinets、Compact busbars、UPS and battery cabinets、DC panels、Low-voltage monitoring cabinets、Fire protection、Lighting、Environmental monitoring、Security systems and more;
